Is Smart Device: no
Operating Mode: ST170 Clamp Meter Multimeter
Operating Temperature: 0 – 50 ℃
DIY Supplies: ELECTRICAL
Model Number: ST170 Clamp Meter Multimeter
Origin: Mainland China
Brand Name: Aideepen
Dimensions: 18.5*5*2.5cm
Display Type: Digital display

Product selling points:

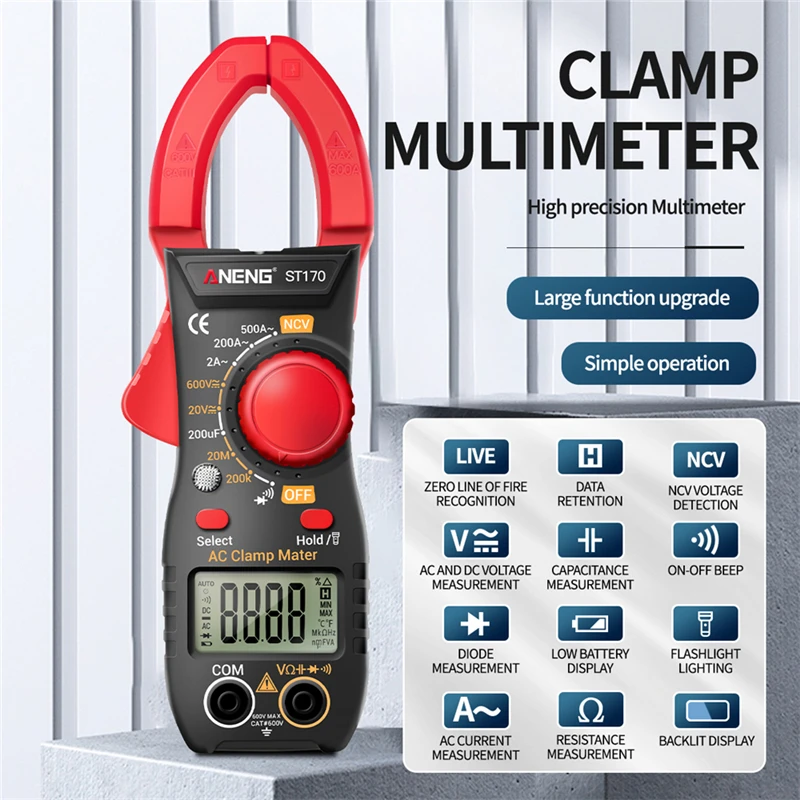

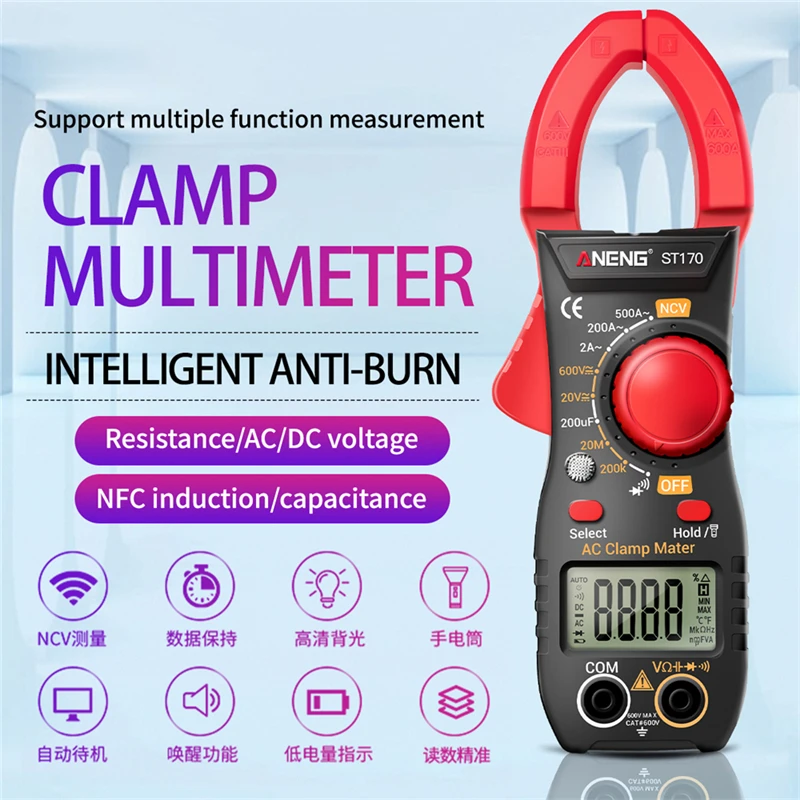

1. Support multi-function measurement: can be used to measure AC current, AC and DC voltage, resistance, capacitance, diode, on-off buzzer, live detection.

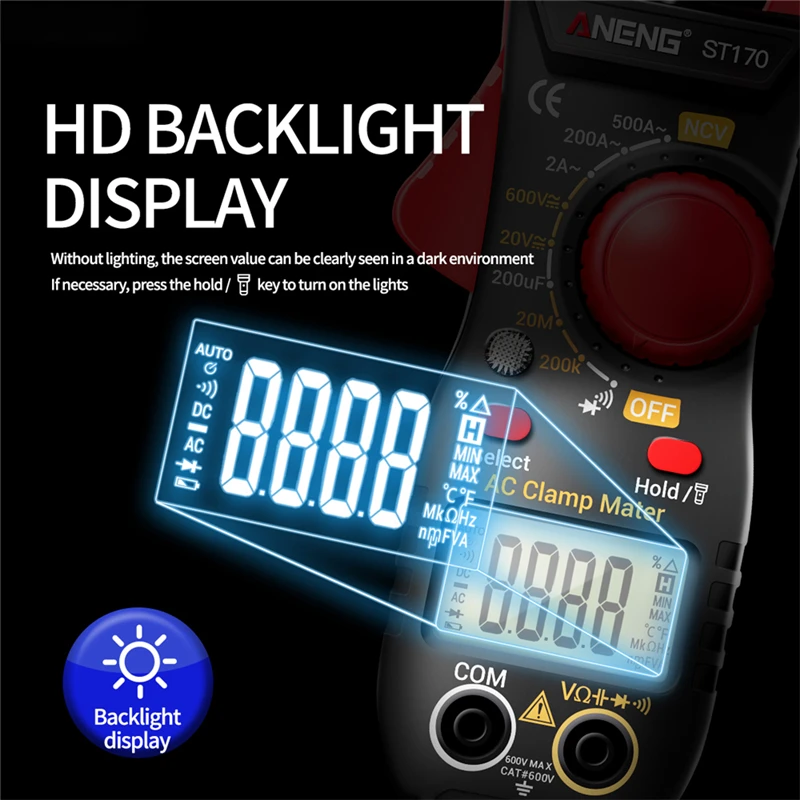

2. High-definition backlit LCD large display, LCD display screen, LCD backlight, clear data display at night and day, easy to read

3. Intelligent anti-burning double ceramic fuse: double ceramic fuse is used on the high-precision circuit board to better protect the circuit and prevent the machine from burning

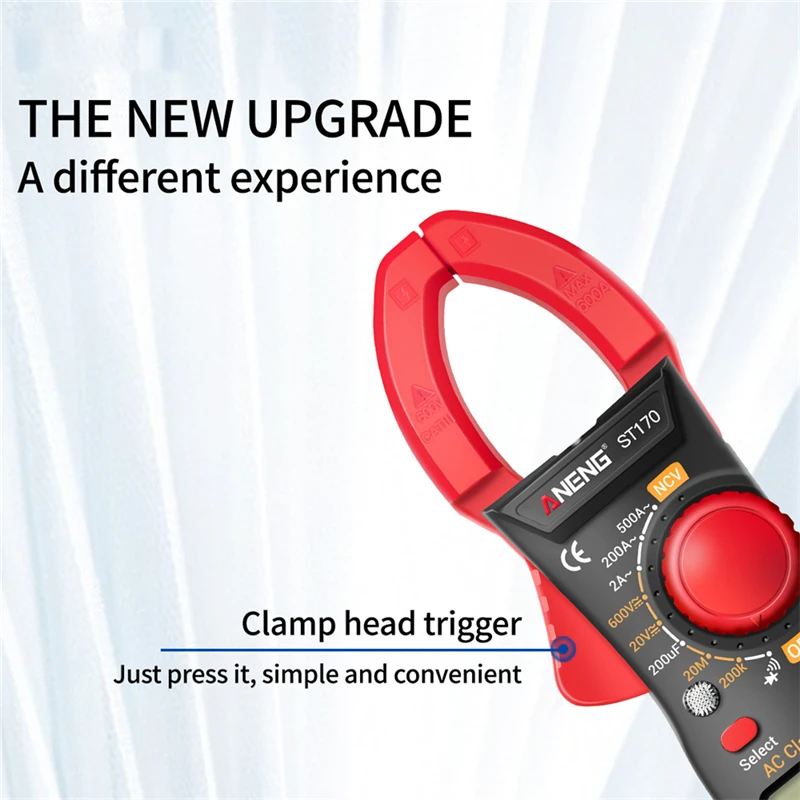

4. Just press the pliers head trigger, which is simple and convenient.

5. High-precision clamp multimeter: Intelligent automatic range clamp multimeter, which can measure current without breaking the wire.

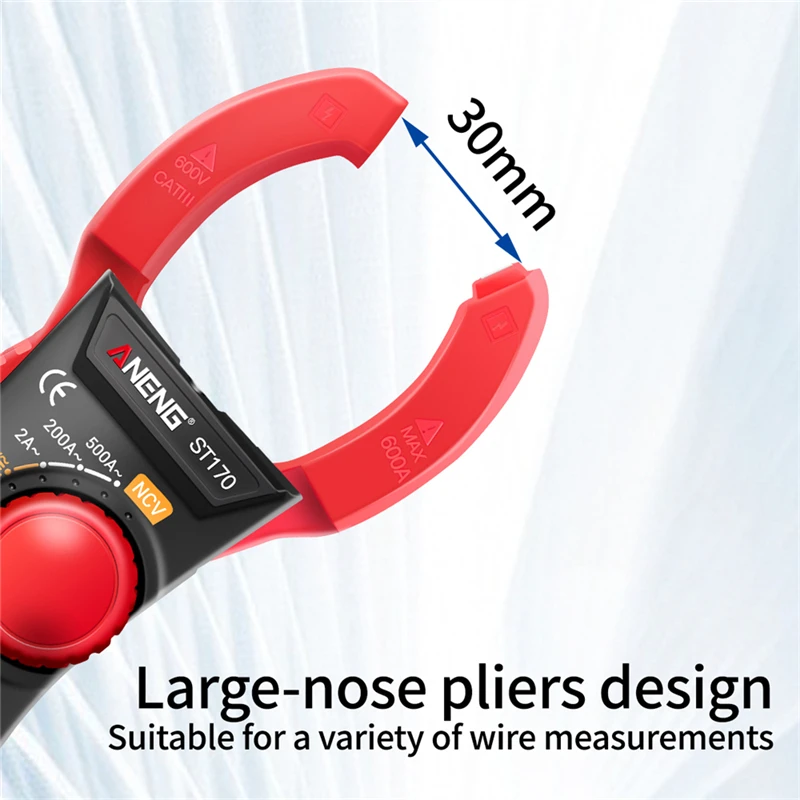

6. Large-nose pliers design: suitable for a variety of wire measurement.

7. Wide range of application scenarios: it can be used for electrician wiring installation and maintenance in public places, new house wiring acceptance, daily hidden dangers in household electricity, simple and easy to understand, ordinary users can also use it to ensure personal safety and the service life of electrical appliances.

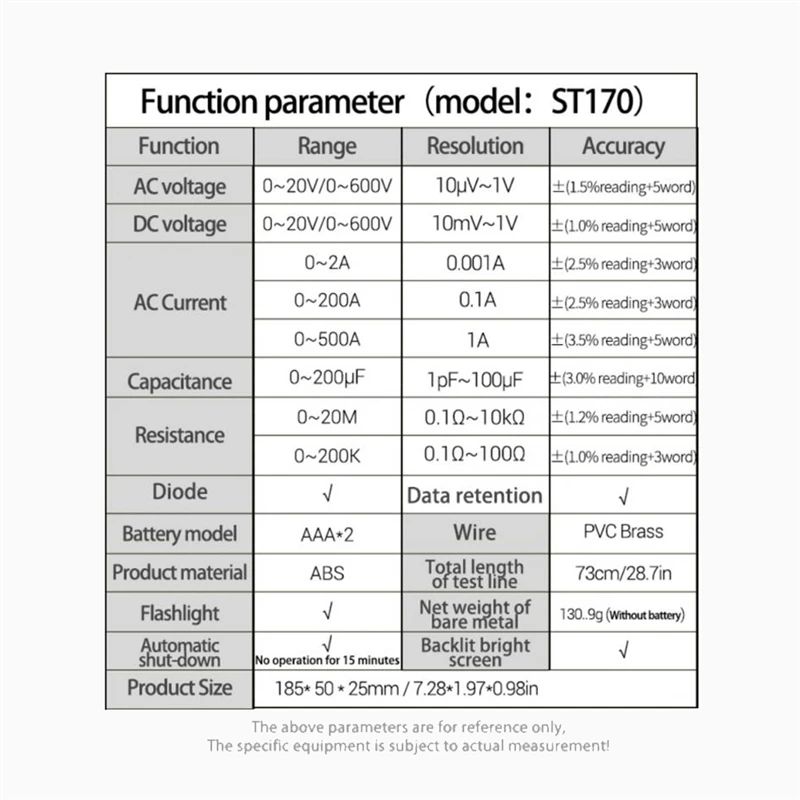

Specification:

Product name: ST170 portable digital clamp multi-function multimeter

Color: (optional) red/black/yellow red

Battery: 2/AAA battery (delivered without battery)

Wire: PVC Brass

Total length of test line: 70cm

Diode: Yes

Data retention: yes

Flashlight: Yes

Automatic shutdown: 15s

Backlight: Yes

Precautions:

1. When measuring current, the position of the fluid to be measured should be placed in the center of the jaws to avoid lengthening errors.

2. When AC current is measured, only the neutral wire or the live wire can be measured, and it is only a core wire. The power supply wires of common electrical appliances in the home cannot be measured because they contain multiple core wires.

3. Before the measurement, the size of the current to be measured should be estimated, and the appropriate range should be selected. When the size of the current is not known, the maximum range should be selected, and the range should be appropriately reduced according to the value, but the range cannot be changed during the measurement.

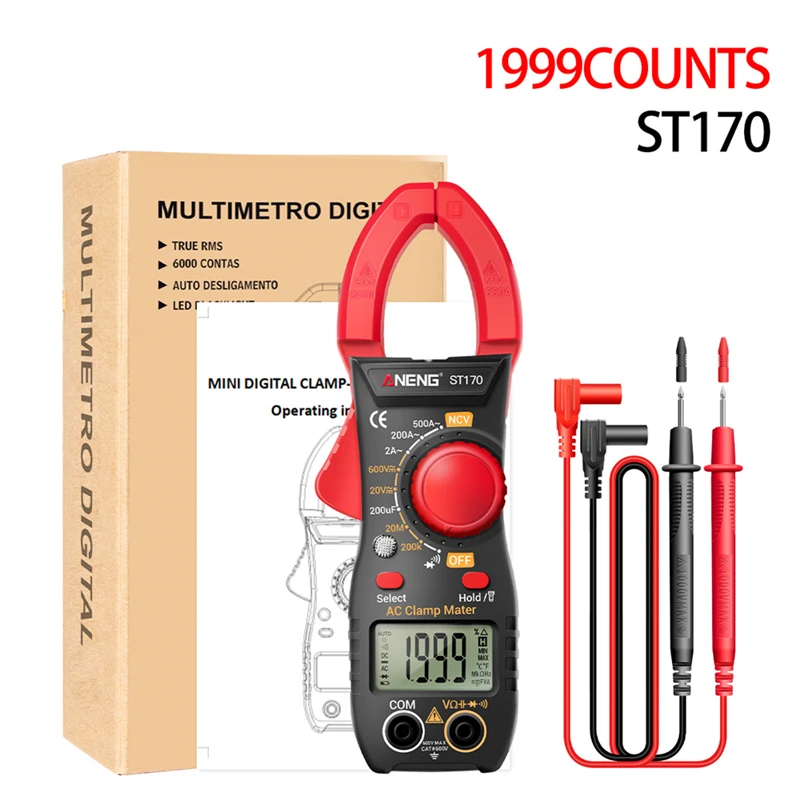

List:

Clamp multimeter*1

Manual *1

Test lead*1
